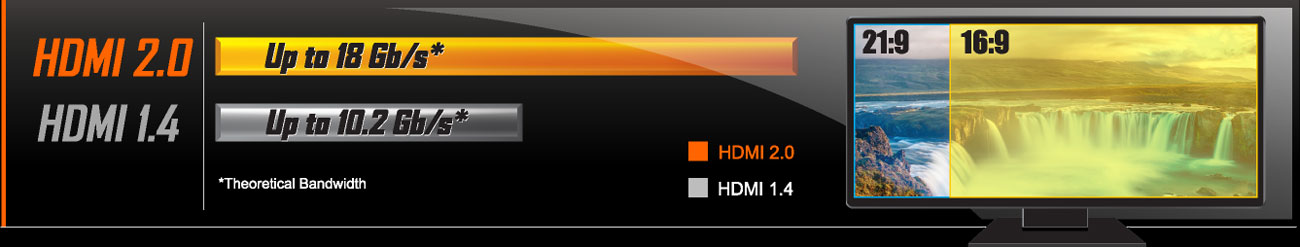

HDMI 2.0 for 4K / 60P / 21:9 / HDCP 2.2 Support
HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
* Product features may vary by model.
Turbo B-Clock
Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the AORUS 200 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
*Turbo B-Clock overclocking range may vary according to CPU capabilities.
Need help overclocking your PC? Scan this QR code
or click here.
Turbo B-Clock Tuning IC in the AORUS 200 series motherboards enable overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
*Turbo B-Clock overclocking range may vary according to CPU capabilities.
Need help overclocking your PC? Scan this QR code
or click here.

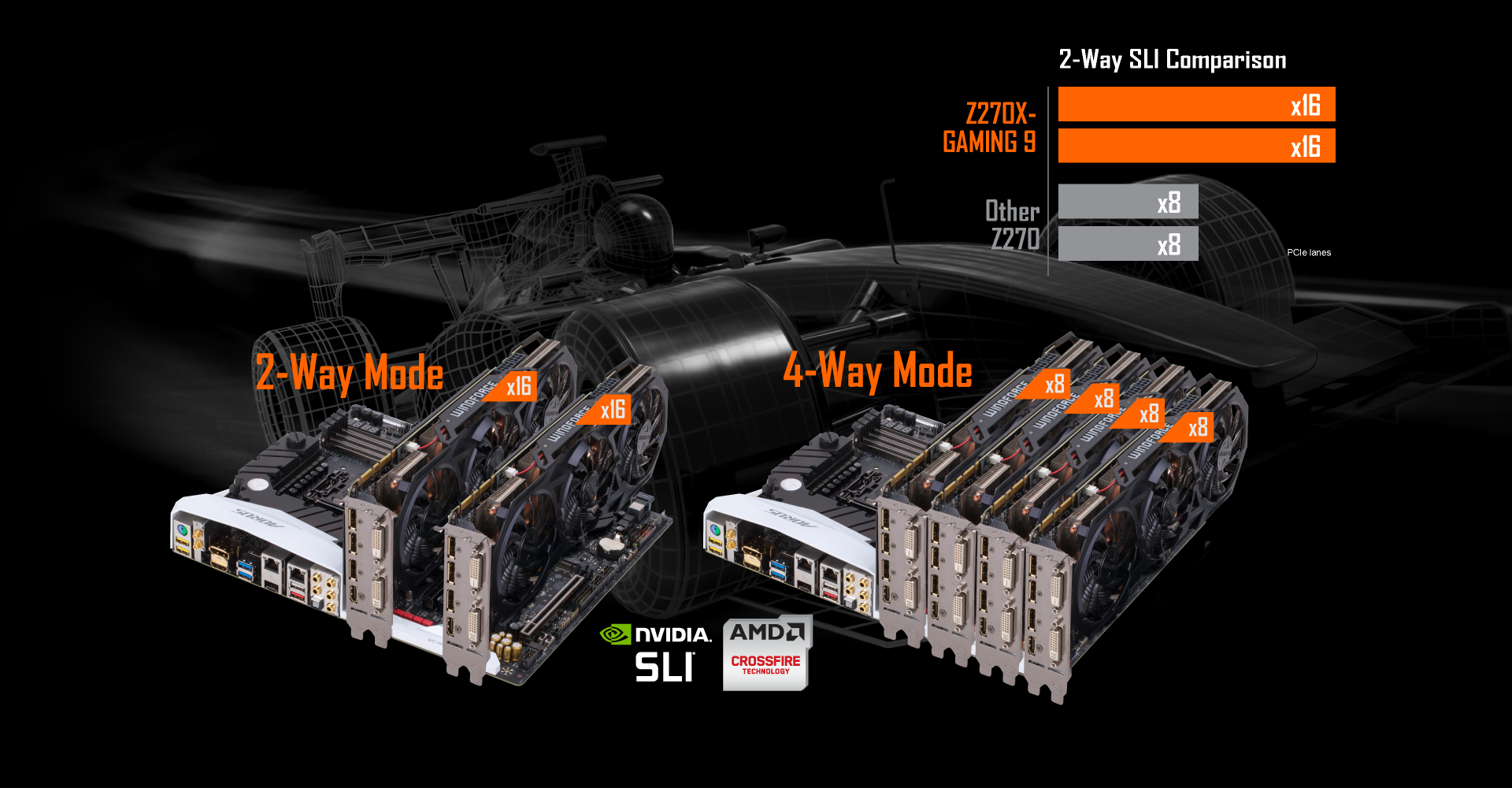

4-Way & Dual x16 2-Way Multi-Graphics Support
• Z270X-Gaming 9 uses the PEX8747 to boost PCIe lanes up to a total of 32 lanes
• Supports up to 4-Way SLI & CrossFire configurations
• Supports dual x16 for 2-Way SLI & CrossFire configurations
• Supports up to 4-Way SLI & CrossFire configurations
• Supports dual x16 for 2-Way SLI & CrossFire configurations
Support for DDR4 XMP Up to 4133MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4133MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboards.
What is XMP?
DDR4 memory modules are available at a stock frequency of 2133MHz, but as frequency tweaking requires a considerable amount of effort and knowledge, memory vendors encode XMP profiles which can automatically modify the timings of the supported memory modules to work with your CPU and to achieve increased performance.
* XMP Profile support may vary depending on memory module. Please visit www.aorus.com to see the complete validated memory support list. Product features may vary by model.
Diagnostic LEDs
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
Opatentowane przez GIGABYTE Podwójny wspornik blokujący
Dual Armor DIMM and PCIe Metal Shielding
Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE’s proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a fool proof option which can save your PC’s life.

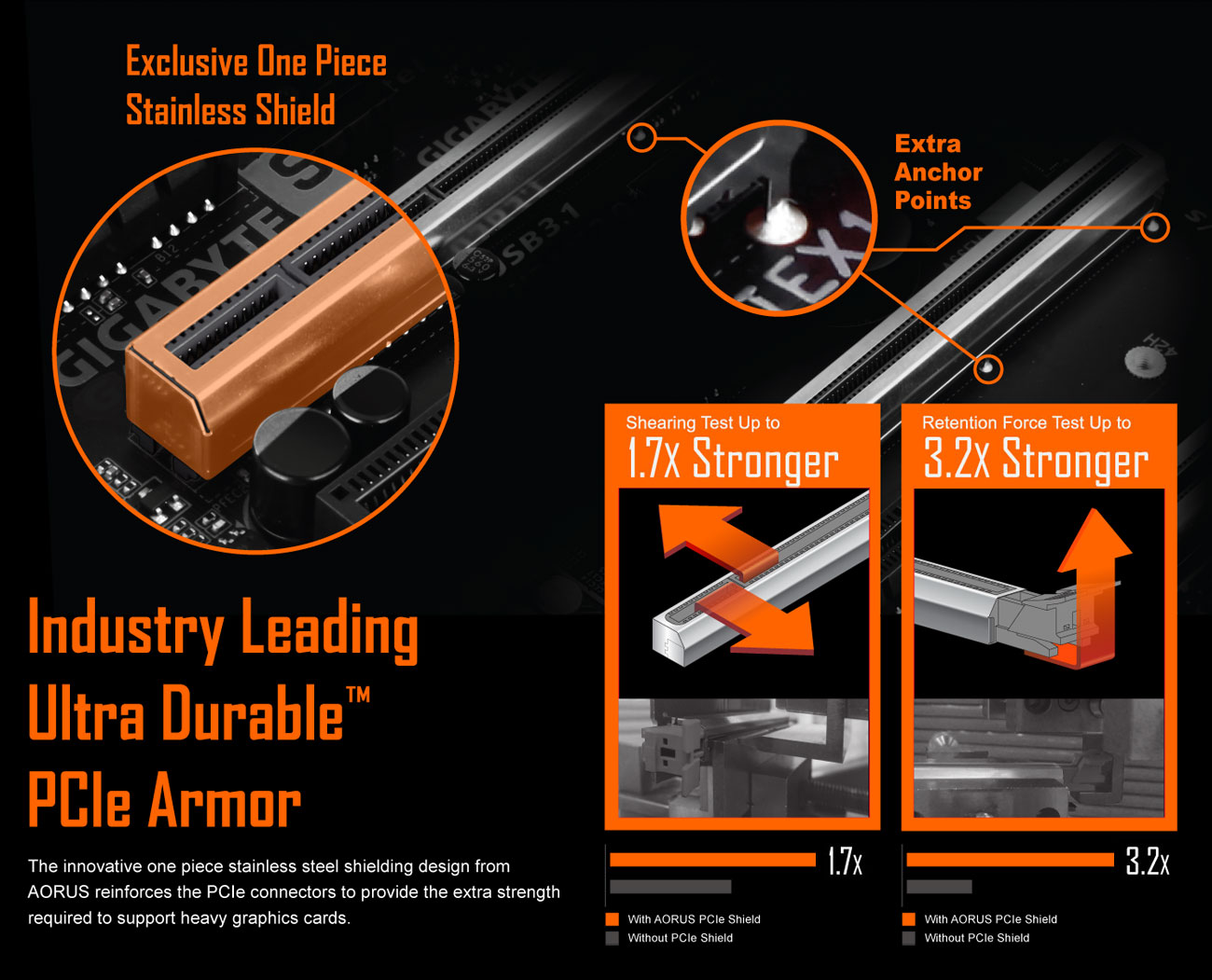

Ultra Durable™ PCIe Armor
Enhanced Strength PCIe Design, Support for Heavy Graphics Cards For Extreme / VR Gaming Station
Ultra Durable™ Memory Armor
AORUS’ exclusive one piece stainless steel shielding design prevents against PCB distortion and twist, plate bending, in addition to preventing any possible ESD interference.
Anti-Sulfur Resistor Design
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
Odświeżony BIOS Easy, Smart, and Friendly
The BIOS is essential for users during initial setup to allow for the
most optimal settings. With a new GUI and easier to use functionalities,
GIGABYTE has been able to reinvent the BIOS to give users a better
experience while setting up their new system.
* Zdjęcia są jedynie poglądowe. Product features may vary by model.
GIGABYTE APP Center
The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.

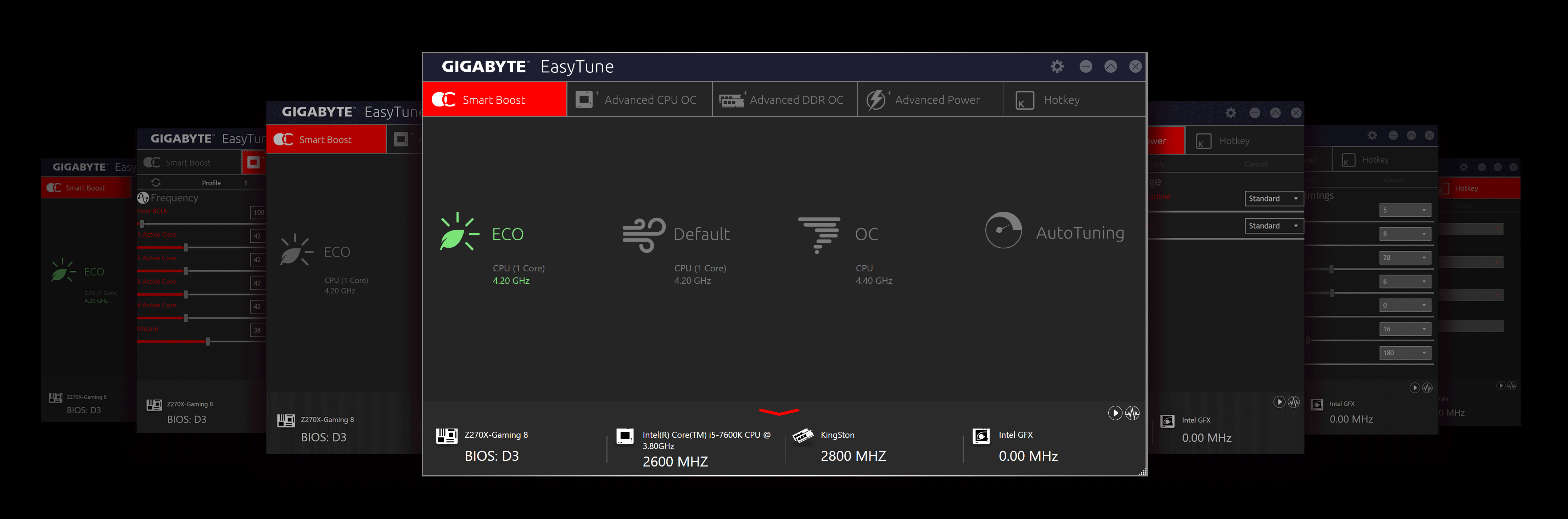

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
Overclocking to Boost Your Frame Rates
Get the highest levels of performance from your PC with easy-to-use GIGABYTE overclocking features.

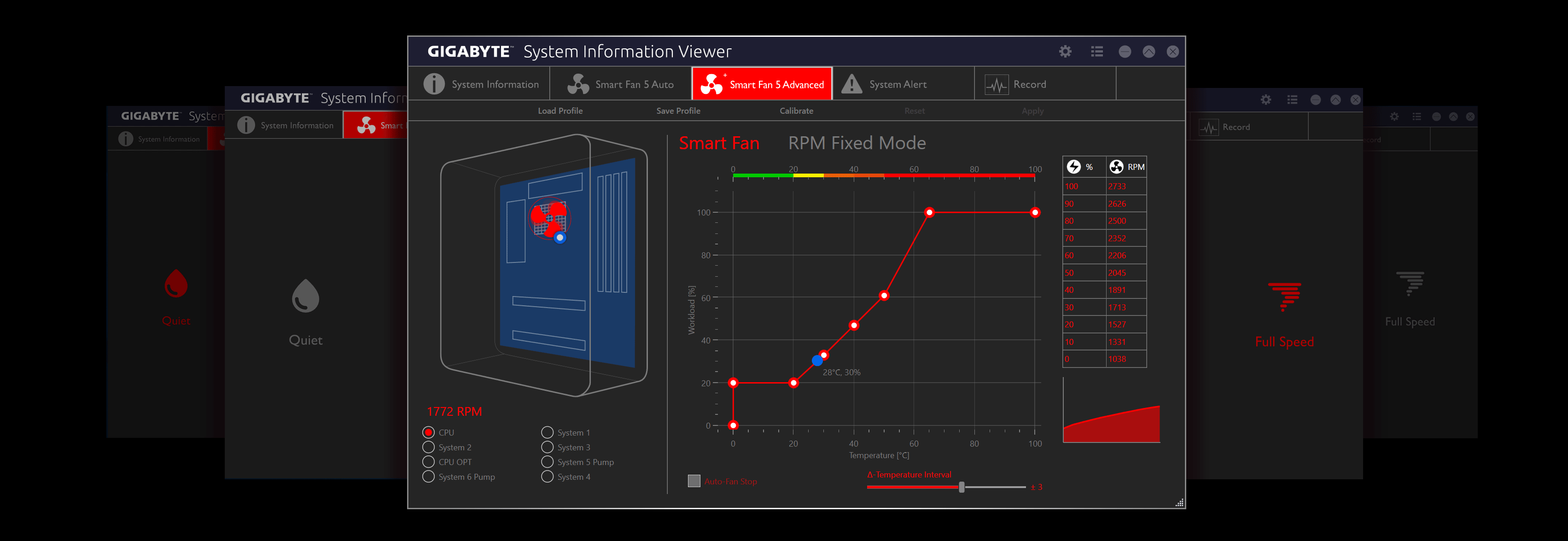

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperature gets too high or record your system’s behavior; these are the possibilities of the System Information Viewer.

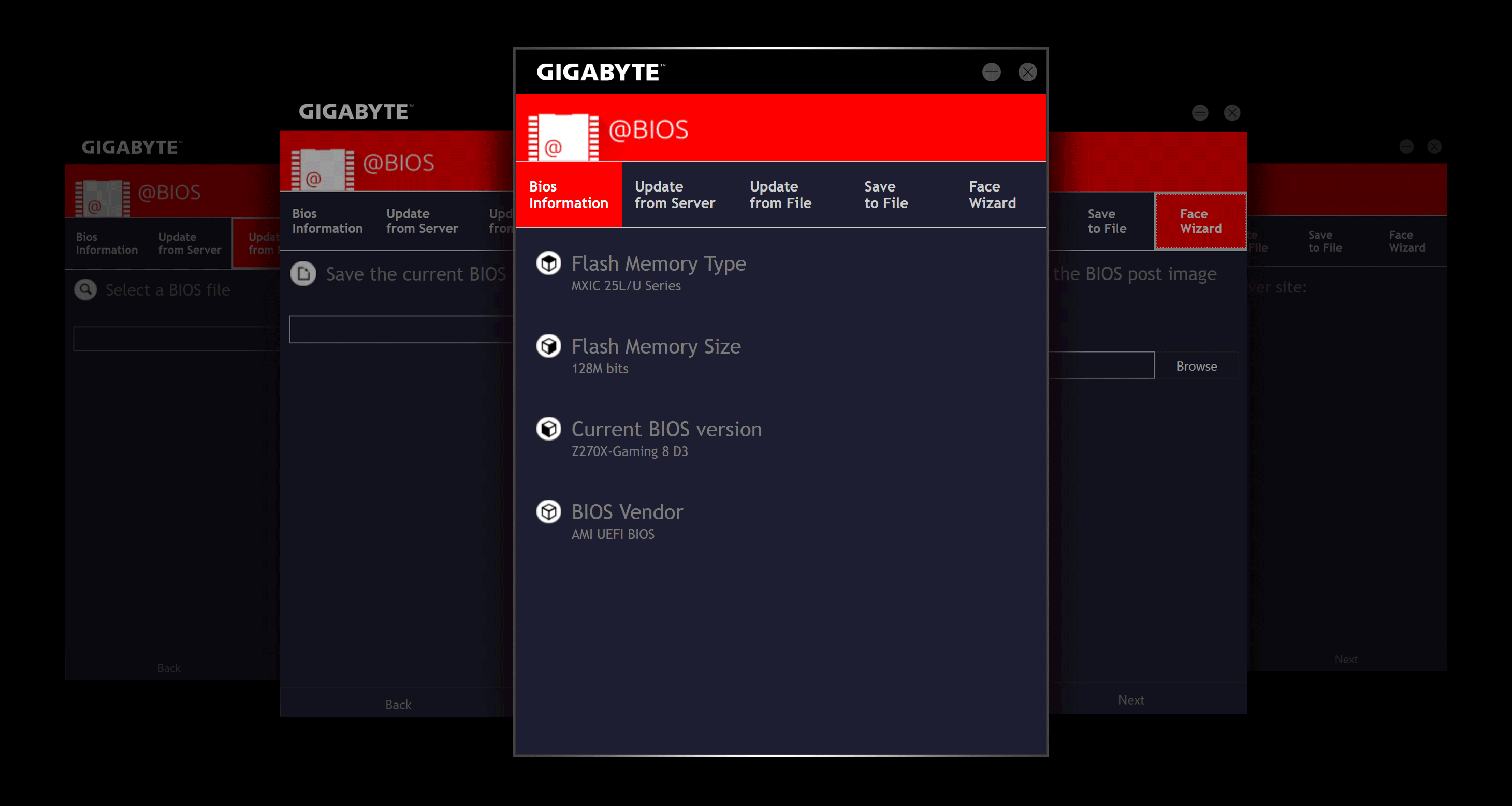

@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

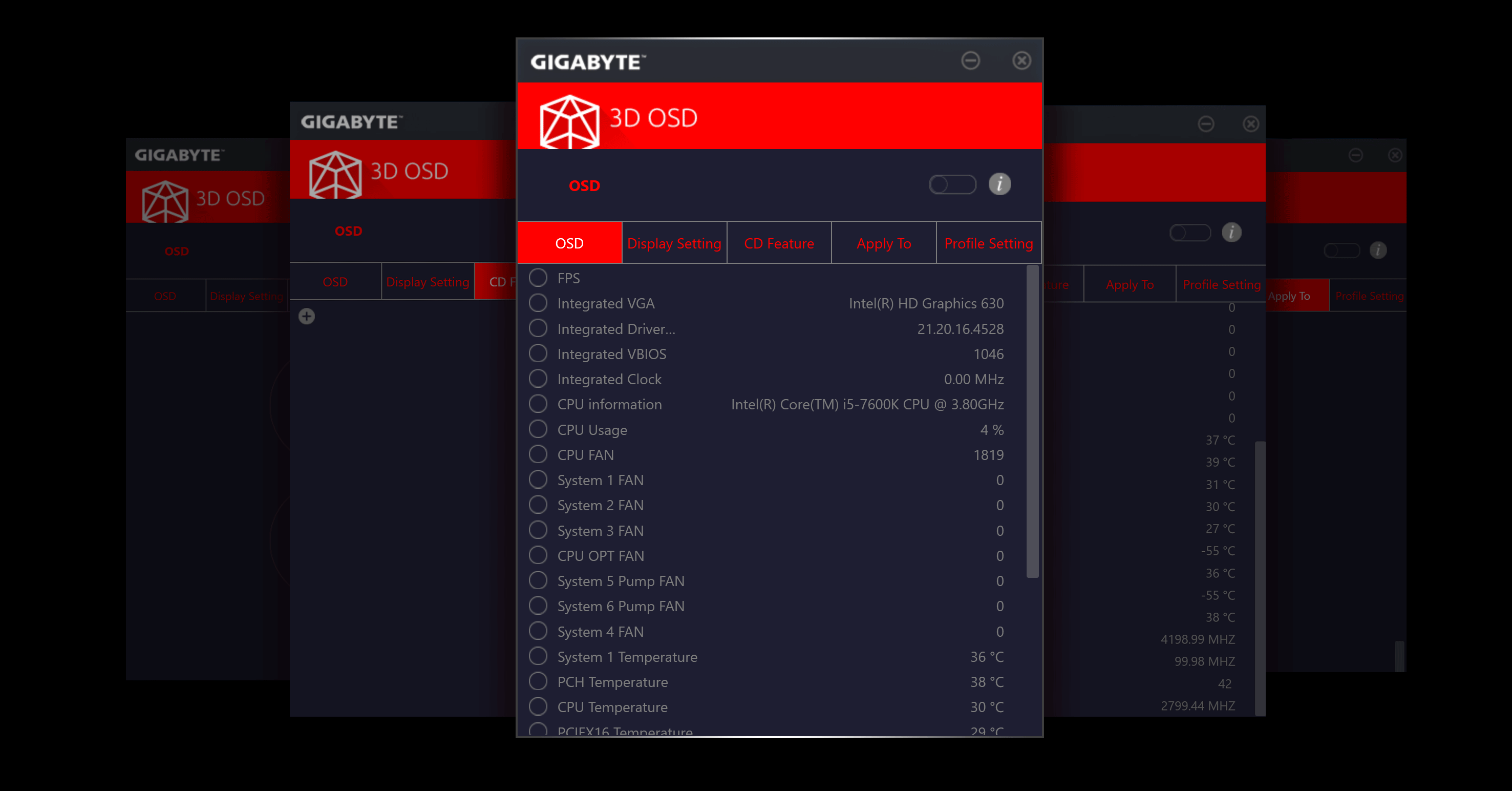

3D OSD
3D OSD automatycznie wykrywa i wyświetla informacje o twoim systemie podczas gry, dzięki czemu możesz łatwo uzyskać informacje o systemie bez przełączania się między ekranami.
GIGABYTE Patented DualBIOS™ (UEFI) Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE
DualBIOS™, an exclusive technology from GIGABYTE that protects arguably
one of your PC’s most crucial components, the BIOS. GIGABYTE DualBIOS™
means that your motherboard has both a ‘Main BIOS’ and a ‘Backup BIOS’,
making users protected from BIOS failure due to virus attack, hardware
malfunction, improper OC settings or power failure during the update
process.
Long Lifespan Durable Black™ Solid Caps
AORUS motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on AORUS motherboards.
2x Copper PCB Design (2 oz Copper PCB)
AORUS' exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
* Product features may vary by model.
Q-Flash Plus
AORUS Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.
Updating your BIOS on your AORUS motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your AORUS Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. A LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.
Updating your BIOS on your AORUS motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your AORUS Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. A LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.
* Product features may vary by model.

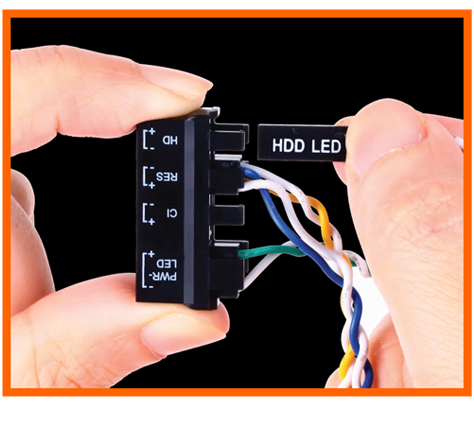

Easy to Install "G-Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate
as space is restricted and indicators being tiny. With the G-Connector,
you can connect all the FP cables at once, simplifying the process of
building your next PC and saving you some frustrations.
XSplit Gamecaster + Broadcaster: Rozgrywaj swoją grę w dowolnym czasie i miejscu
Teraz ustaw swoja rozgrywkę i podziel się najlepszymi momentami w grach dzięki XSplit Gamecaster + Broadcaster! W pełni zoptymalizowana integracja z mediami społecznościowymi jest gotowa do prowadzenia czatów w czasie rzeczywistym, dzięki czemu jesteś na bieżąco informowany o powiadomieniach, a jednocześnie skupiony na grze. Wystarczy jedno kliknięcie, aby przesłać swoją grę do Twitch. Hostuj swoją grę jak profesjonalista!
* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
* Product features may vary by model.
TriDef® SmartCam | Custom Stream Modding
Aby ułatwić streamowanie, każda płyta główna GIGABYTE zawiera oprogramowanie TriDef® SmartCam, dzięki któremu możesz usunąć tło bez konieczności używania zielonego ekranu. Dzięki aplikacji SmartCam możesz teraz stosować filtry na żywo i w pełni kontrolować swoje tło, nie tylko podczas streamingu, ale także za pośrednictwem innych aplikacji wideo, takich jak Skype.
* Bezpłatna miesięczna licencja TriDef® SmartCam.
