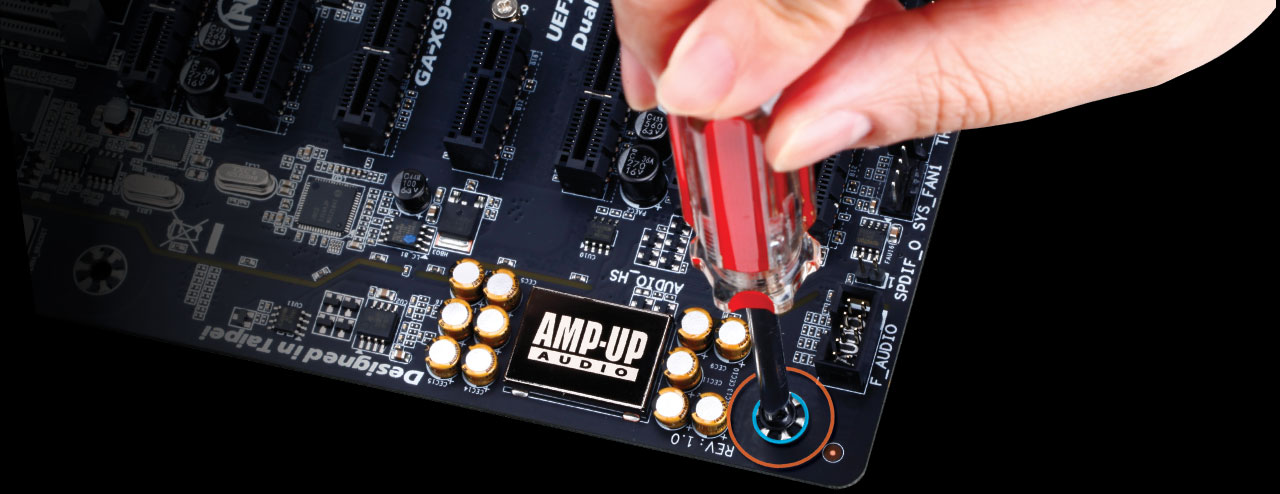

Safer Design Around Screw Mounting Holes Don’t worry anymore about accidental damage while
mounting your motherboard to you chassis. GIGABYTE X99 motherboards all
feature a wider copper ground pad and onboard components free area
around the PCB screw mounting holes. This exclusive design reduces the
chances of damaging any surrounding onboard components during the PC
assembly process. Bigger copper ground pads also provide the added
benefit of lower EMI disturbance for reduced noise interference across
your system.

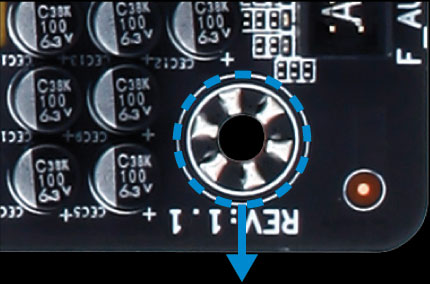

Standard Screw Mounting Hole

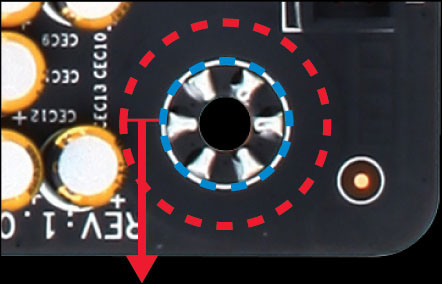

Safer Screw Mounting Hole
Standard Design: Components near the screw holes are more likely to be damaged
New design: Enlarge screw hole mounting working area for safer PC assembling
USB thumb drive not included
Q-Flash USB Port
Q-Flash Plus GIGABYTE Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the need for CPU or Memory to be installed. Do you have the latest CPU supported by your GIGABYTE motherboard but do not have the latest BIOS installed yet? This is no longer a problem with the new Q-Flash Plus feature. By simply downloading the latest BIOS and renaming it on a USB thumb drive, and plugging it into the dedicated port, you can now flash the BIOS automatically without the need to press any buttons or even the need of onboard memory or CPU. Utilizing the ITE EC 8951E controller, GIGABYTE X99 motherboard BIOS can be updated even if your system is unable to boot. An LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.
Q-Flash Plus Controller
Q-Flash Plus LED indicator
* Features may vary by model.
