GIGABYTE 9 Series Overclocking Motherboards

Unikalne cechy ułatwiające overclocking:
Przycisk OC Ignition
OC Ignition maintains power to the motherboard and connected components while the system is shut down. This means that system fans will continue to provide airflow in cold bug situations, while i-ram drive users will not lose installed data. OC Ignition also allows users to pre-test water cooling setups, and allows case mod demonstrations without having to turn on the PC. • Fans continue to provide airflow in cold bug situations • Perfect for pre-testing water-cooled system setups • Case mod demonstrations without having to turn on the PC • Retains i-ram data

OC DIMM and OC PCIe Switch

OC DIMM Switch: Manually turn on or off each channel of installed memory DIMMs, allowing users to effortlessly disable memory DIMMs from the system without the hassle of physically removing.

OC PCIe Switch: Overclockers can manually turn on or off each installed PCIe lane of the motherboard, allowing users to disable individual graphics cards without physically removing. This is especially useful when overclocking on LN2 and water cooled systems

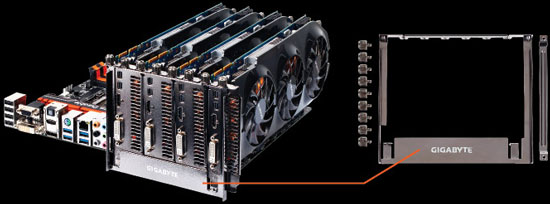

OC Brace
OC Brace allows extreme overclockers and system testers to safely install up to four graphics cards in an open case or test bed without risking PCIe slot damage or preventing cards not showing up in the OS due to poor contact with PCIe slot. OC Brace is a simple and elegant way to give robust installation support to full sized graphics cards in extreme multi-GPU configurations.

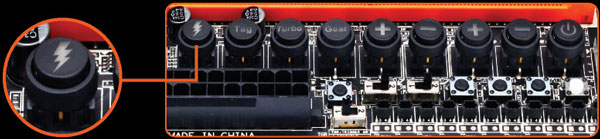

OC Touch

GIGABYTE OC Touch includes a range of hardware overclocking buttons directly on the motherboard, making overclocking on the fly extremely fast and easy.

OC PCIe and
OC DIMM Switches
Manually turn on and off PCI Express lanes and memory channels for hassle-free troubleshooting without having to physically remove hardware.

Przycisk OC Ignition
Hitting the OC ignition button gives continuous, uninterrupted power to all of the motherboard’s connected drives and system fans, but not to the CPU.

OC Tag
Ładuje profil użytkownika po wyczyszczeniu pamięci CMOS

OC Turbo
Przycisk do automatycznego overclockingu; system sam znajdzie optymalne ustawienia procesora i pamięci gwarantujące stabilną pracę płyty głównej

Przyciski OC Touch
Przyciski umożliwiają ręczne dostosowanie napięcia CPU oraz zmianę ustawień BCLK

Clear CMOS
umożliwia czyszczenie pamięci CMOS

OC Trigger Switch
Przycisk zwiększa/zmniejsza częstotliwość

DualBIOS™ Switch
Select which BIOS (main or backup) to use. This allows users to ‘compare’ different versions of BIOS for troubleshooting.

Single Mode BIOS Switch
Enable or disable GIGABYTE DualBIOS™ feature.

Settings Lock
System automatycznie zapamięta I przywróci ostatnie, dobre ustawienia gwarantujące rozruch płyty głównej, po czyszczeniu pamięci CMOS

Direct to BIOS (DTB)
Pozwala wejść do BIOSu bezpośrednio po zrestartowaniu systemu, bez konieczności wciskania przycisku Del

	Reset Button Restartuje system.
Memory Safe Obniża timingi pamięci DDR3 eliminując problem niekompatybilności pamięci

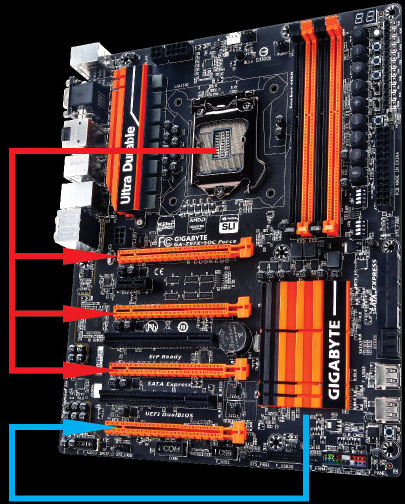

Wsparcie dla wielu kart graficznych

PCIe 3.0 x16 lanes
direct from CPU

PCIe 2.0 x16 lanes<br>direct from Chipset

Optimized Multi-GPU
Configurations
1 GPU: x16 3 GPU: x8,x4,x4
2 GPU: x8, x8 4 GPU: x8,x4, x4, x4

GIGABYTE 9 series overclocking motherboards feature optimized support for AMD CrossFire™ in 4 way configuration plus support for Nvidia SLI technology in 2-way setups. This extreme design allows a more optimized multiple-card overclocking experience where the first 3 slots have the data bandwidth available from trace paths direct from the CPU and the fourth slot taking PCIe lanes from the Intel® Z97 PCH.

Wsparcie dla 4 kart graficznych

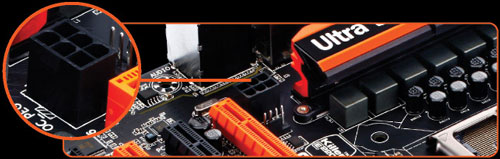

Przycisk OC PEG
OC Peg dostarcza dodatkowe zasilanie slotom PCIe, podnosząc stabilność systemu dla konfiguracji Multi-GPU, wymagających sporej dawki energii.

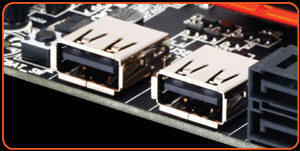

OC Connect
OC Connect positions two USB connectors on the near side of the motherboard facing the overclocker. This makes it easier to save data, flash the BIOS or install software in open bench testing platforms whether for extreme overclocking or simply pretesting the PC before final component installation inside a case scenarios where accessing the rear panel I/O can be an inconvenience.

* Specyfikacje mogą się róźnić w zależności od modelu..
