GIGABYTE X99 motherboards feature a unique PCI Express design that utilizes 100% of all 40 lanes from the CPU when in a 4-Way or 3-Way graphics configuration. Standard designs limit all 4 main PCIe lanes to x8 (64Gb/s) bandwidth, but thanks to the onboard external clock generator combined with the direct connection of one of the x16 lanes to the CPU (switchless design), GIGABYTE X99 motherboards can unlock the full bandwidth available and provide the best graphics bandwidth possible to the user.

Fast Data Transfer and Advanced WIFI Networking

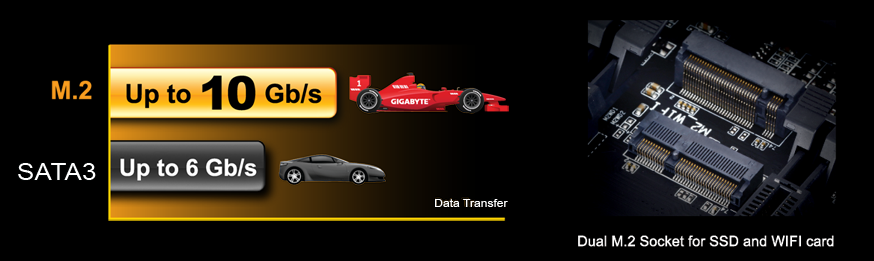

GIGABYTE X99 motherboards featuring Dual M.2 technology provide users PCI-Express connectivity for SSD devices and for 11AC WIFI + Bluetooth 4.0 card. Delivering up to 10 Gb/s data transfer speeds, M.2 offers considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices. GIGABYTE’s stacked design optimizes the PCB real-estate usage, allowing more components to be efficiently added without compromising any space.

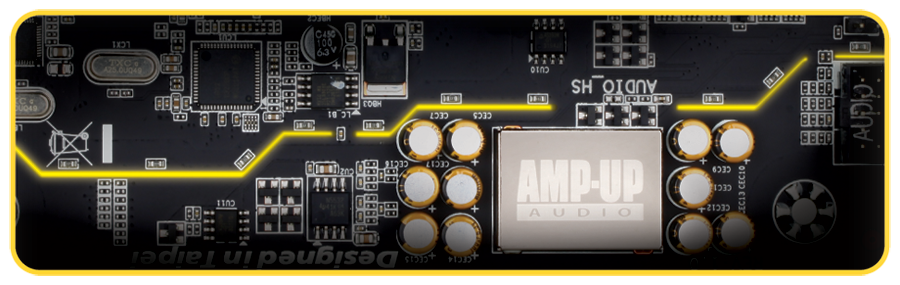

Locating the right and left audio channels on separate PCB layers, GIGABYTE X99 series motherboards are able to eliminate channel crosstalk and maintain the best audio quality.

GIGABYTE X99 series motherboards use an all digital CPU power design from International Rectifier® which includes both 4th Generation digital PWM Controllers and industry-leading 3rd Generation PowIRstage® controllers. These 100% digital controllers offer incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from their new Intel® Core™ i7 Extreme Edition CPUs.

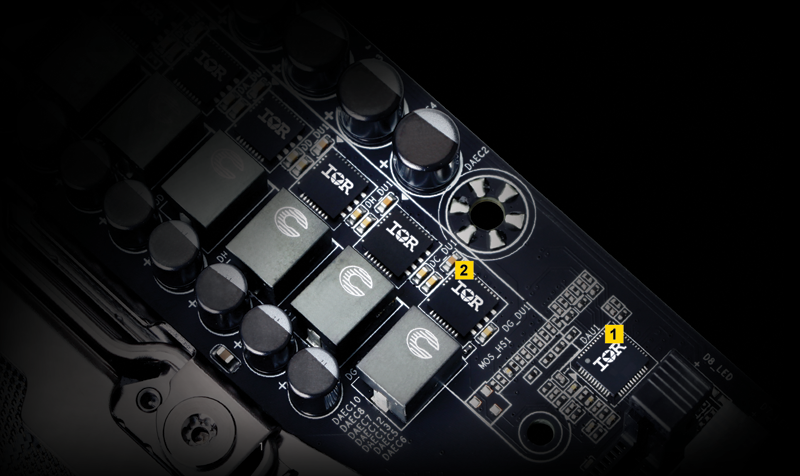

IR Digital PWM & IR PowIRstage® ICs

This new generation of IR® digital power controllers and PowIRstage® ICs feature Isense technology, which provide more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.

IR® has leveraged it's world class packaging technology developed for the DirectFET®, improving the thermal capability and layout of the PowIRstage® significantly over that of other MCM packages.

GIGABYTE X99 series motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

Intel^® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.

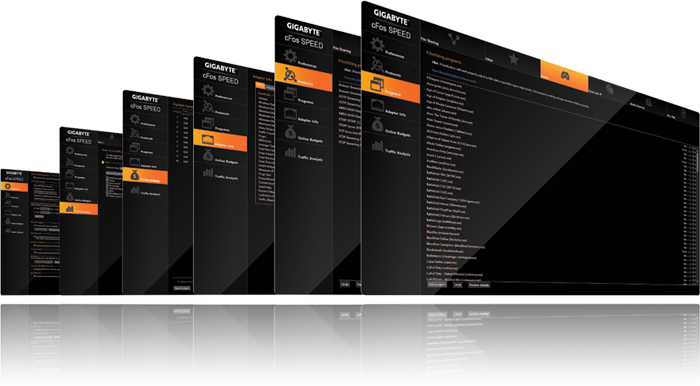

Additional GIGABYTE X99 series motherboards feature cFos Speed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environment. cFos Speed works in a similar way to an OS driver, monitoring network traffic packets at the application layer, allowing optimization and improved network performance for specific applications.

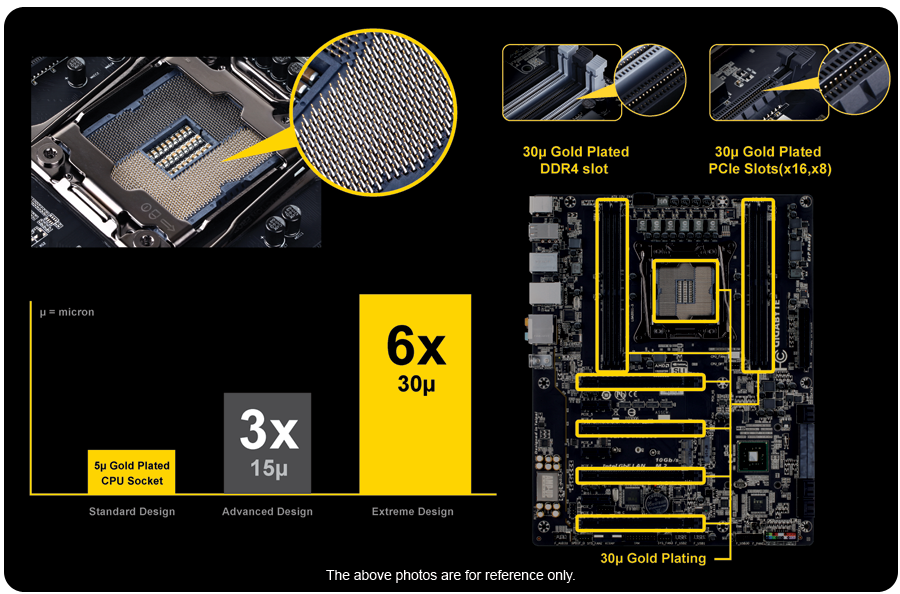

GIGABYTE X99 motherboards come equipped with a 30 micron thick gold plating for the CPU socket, 4 PCIe slots and over the 8 DIMM slots, which means that enthusiasts can enjoy better connectivity, absolute reliability and longevity for the diverse connectors overtime, without having any concerns about corroded pins and bad contacts.

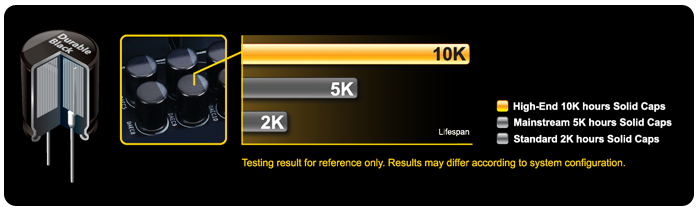

GIGABYTE X99 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. With ultra-low ESR no matter how high the CPU loading, these exclusive capacitors also come in customized jet black, exclusively on GIGABYTE X99 series motherboards.

GIGABYTE Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the need for CPU or Memory to be installed.
Do you have the latest CPU supported by your GIGABYTE motherboard but do not have the latest BIOS installed yet? This is no longer a problem with the new Q-Flash Plus feature. By simply downloading the latest BIOS and renaming it on a USB thumb drive, and plugging it into the dedicated port, you can now flash the BIOS automatically without the need to press any buttons or even the need of onboard memory or CPU. Utilizing the ITE EC 8951E controller, GIGABYTE X99 motherboard BIOS can be updated even if your system is unable to boot. An LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.

Don’t worry anymore about accidental damage while mounting your motherboard to you chassis. GIGABYTE X99 motherboards all feature a wider copper ground pad and onboard components free area around the PCB screw mounting holes. This exclusive design reduces the chances of damaging any surrounding onboard components during the PC assembly process. Bigger copper ground pads also provide the added benefit of lower EMI disturbance for reduced noise interference across your system.

GIGABYTE EasyTune™ is a simple and easy-to-use Windows-based software application that allows users to fine-tune their system settings.

• Adjust system and memory clocks and voltages in a Windows environment.
• System-related information display without the need to install additional software.

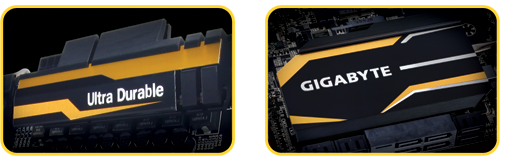

GIGABYTE X99 series motherboards feature new heat sink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE X99 Series motherboards offer cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters.

GIGABYTE X99 motherboards feature LED lighting for the audio guard light path, providing a cool, custom look to your rig. These lights are now programmable, so you can have them beat to the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.

Intel® Core™ i7 Extreme Edition Processors are Intel’s first 8 core desktop CPUs and is the first to support DDR4 memory. These next generation 22nm CPUs delivers greater performance and energy efficiency as well as the industry’s highest level of discrete graphics performance by sporting 40 PCIe Gen.3 lanes, which GIGABYTE X99 motherboards are able to take full advantage of, delivering bandwidth totaling 320 Gb/s for the most demanding gamers or graphics intensive creation tasks such as video editing. On top of that, Intel® Core™ i7 Extreme Edition CPUs deliver 8 core (16 threaded) multitask processing, higher frequencies, as well as larger cache size. Additionally, GIGABYTE X99 users can draw even more performance out of their Extreme Edition CPUs, as they are fully unlocked for overclocking. With enhanced overclocking oriented options available on all GIGABYTE X99 series motherboards, users will be able to take full advantage of all the performance potential of Intel Extreme Edition CPUs. *CPU core count and PCIe bandwidth varies by CPU model.

The next generation of DRAM is here with DDR4. Featuring stock frequencies starting at 2133 MHz, DDR4 delivers up to 20% less energy consumption and twice as much density as the previous generation DDR3. DDR4 can help GIGABYTE X99 users to load their programs faster, increase responsiveness of their system and help them to handle heavy data tasks in a flash. GIGABYTE X99 motherboards provide 4 Channel DDR4 memory support across the entire range, bringing exceptionally fast memory access.

The GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to easily launch all GIGABYTE apps installed on your system, check related updates online, and download the latest apps, drivers, and BIOS.



Customized the APP Center’s look and behavior according to your taste in the Preferences Menu.

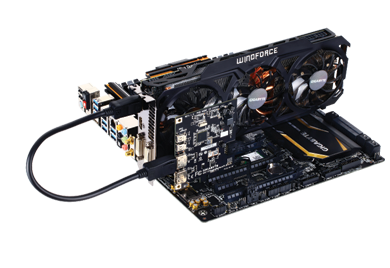

GIGABYTE X99 brings the expandability needed to make your system the ultimate one with an onboard pin header to accommodate the addition of a GIGABYTE Thunderbolt™ add-in card. The Thunderbolt™ controller can provide bandwidth of up to 20 Gb/s, compared to a max of 10 Gb/s on previous generation designs. This allows for incredible data transfer speeds when using high performance storage devices, while also supporting daisy-chaining of up to 12 devices and triple digital display support. * Thunderbolt™ card and cables not included. ** For a list of supported Thunderbolt™ add-in cards, please visit the GIGABYTE website.

Podwójna ilość miedzi na płytce PCB zapewnia lepszą wydajność energetyczną oraz odprowadzanie ciepła ze strefy CPU. Jest to niezbędne dla zapewnienia obsługi większego obciążenia podczas podkręcania.
