Ultra Durable BLACK EDITION

Extended server level 168 hour Durability Test

  • GIGABYTE Black Edition motherboards undergo an extra 168 hours (7 days) of stress testing before shipment to ensure premium quality for our customers.

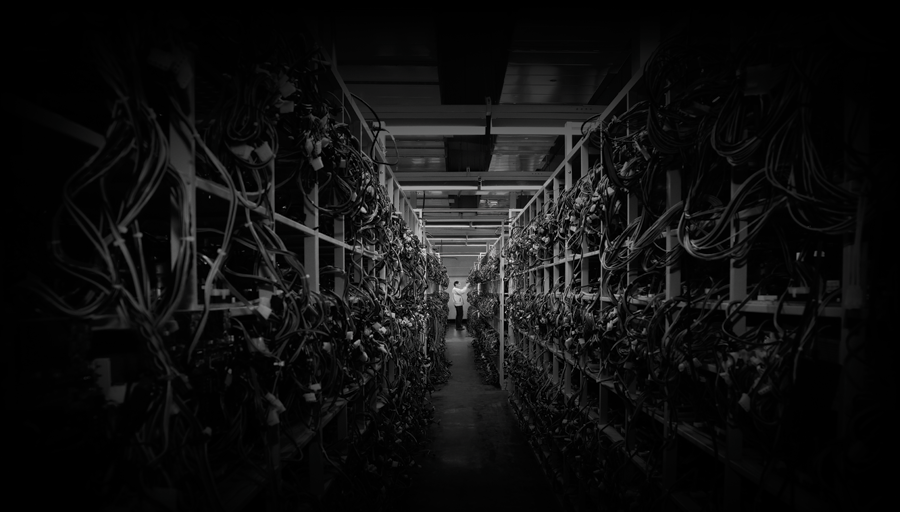

  • During the 168 hour test, each motherboard needs to pass rigorous, full system validation testing for 1 full week. GIGABYTE has built a custom testing facility at our Taiwan (Nanping) factory.

  • A Certificate of Validation is included with every board, issued by the GIGABYTE factory and signed by the manufacturing VP & GM to indicate that each board has passed our highest test standards.

G1™ Gaming Motherboards

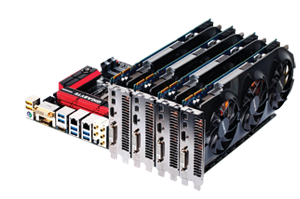

Extreme Multi-GPU Support
Flexible graphics capabilities supported for either 4-Way CrossFire™ or 4-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.


SATA Express Connector
GIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.


Creative® Sound Core3D™ Quad-Core Audio Processor



Combining world’s first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.
+ Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
+ Total solution from Creative (Hardware + Software)
+ Richer overall audio experience
Gold Plated Audio Hardware
GIGABYTE G1™ Gaming motherboards pack top quality gold plated audio and HDMI connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Creative Sound Core3D™ processor is also shielded by a gold plated cover which eliminates electrostatic interference.
Locating the right and left audio channels on separate PCB layers, GIGABYTE 9 Series G1™ gaming motherboards are able to eliminate channel crosstalk and maintain the best audio quality.
Left Audio Channel
PCB layer


Right Audio Channel
PCB layer
Pozwyższe zdjęcia służą jedynie do celów poglądowych.



Dual DAC-UP USB Ports
Featuring dual USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.
GIGABYTE AMP-UP Audio™ Technology
GIGABYTE G1™ Gaming motherboards are equipped with the exclusive GIGABYTE AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.

How does GIGABYTE AMP-UP Audio™ Technology work?

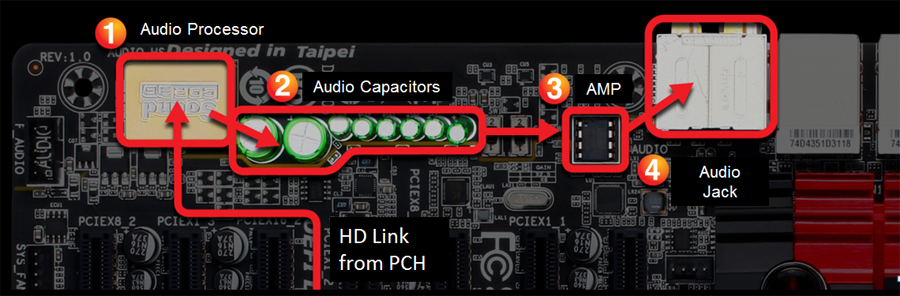

GIGABYTE Direct Audio Route Design

GIGABYTE Exclusive : Upgradable OP-AMP
Customizable
+ Users can choose audio quality based on individual listening preferences.
+ Wide availability of additional OP-AMPs.

Low Cost way to dramatically improve audio quality
+ Improve audio dynamics and overall sound-quality with little cost.
+ No need for expensive speakers or high-end audio equipment.
* IC Extractor not included.
Well Known Hi-Fi class OP-AMP : TI Burr Brown OPA2134
Exclusive onboard 'Gain Boost' selector switches
+ Select either standard 2.5x or high-amplification 6x mode.
+ 6x mode is ideal for high impedance speakers and headphones

Creative SBX Pro Studio™ Audio Suite
SBX Pro Studio™ suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music.
High End Audio Capacitors
GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

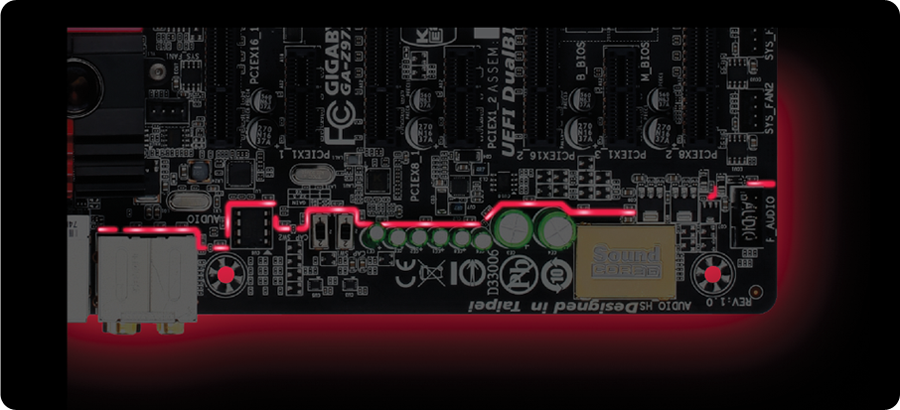

Dedicated Audio Hardware Zone
+ Separation on the PCB layer protects the board’s sensitive analog audio components.
+ Separate analog and digital ground to protect against Electromagnetic Interference (EMI).
+ LED trace path lighting illuminates to show the separation of the PCB layers.


Killer™ E2200 Gaming Network
NO LAG, JUST FRAG!
GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.



Game Controller
GIGABYTE Game Controller allows you to define your own hotkeys and change the mouse sensitivity, helping you make the most out of your keyboard and mouse in games.
Hot Key:
Create macro commands and define your own hotkeys to quickly perform the function your want.
*Create the hotkeys by yourself on normal keyboard.
Speed:
Using the Sniper key you can switch the mouse sensitivity when you are  in sniper mode for better sniper accuracy.
With Speed Control
Without Speed Control
Enable mouse Sniper Mode to make your shot quick and stable.
High DPI Mouse in sniper mode: Hard to focus
G1 Looks

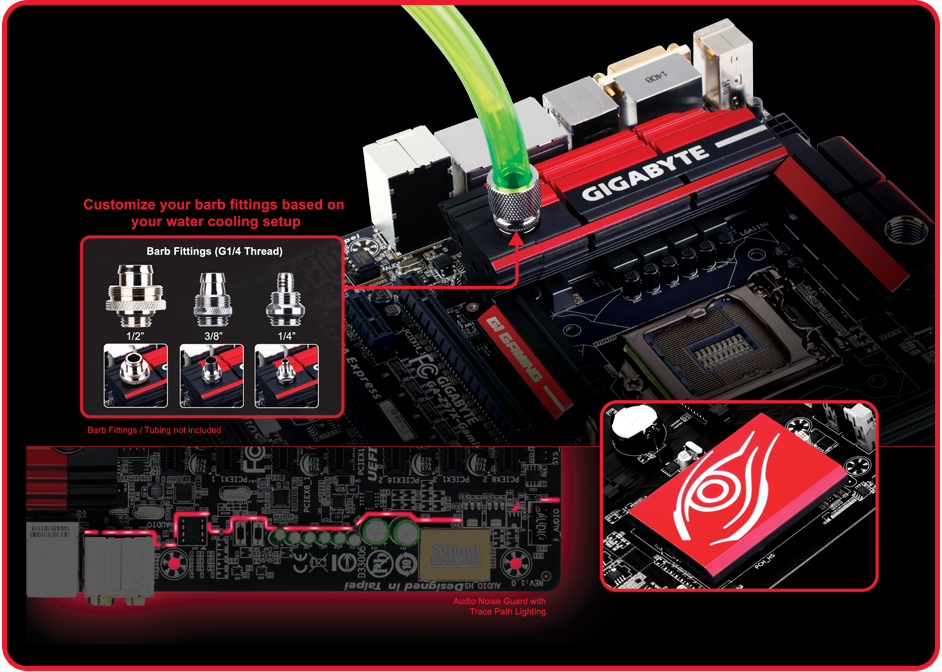

Water Block Thermal Design with G1/4 Threaded Fittings
Tube connectors at each end of the heatsink provide easy integration with any water cooled system. These technologies help combat high temperatures by effectively removing heat from critical areas of the motherboard such as the CPU VRM zone, allowing it
to remain cool, even when the battle heats up.
Integrated 2T2R Dual Band IEEE802.11ac WiFi + BT 4.0
This motherboard comes with an exclusive IEEE802.11ac WiFi module that supports up to 867Mbps wireless networks and Bluetooth 4.0. IEEE802.11ac WiFi runs at up to 867Mbit/s and the bundled 2.4GHz/5GHz dual-band, 2T2R antenna gives you wide coverage.
Intel® Gigabit LAN
Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.
10K Durable Black™ Solid Caps
GIGABYTE 9 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for a guaranteed minimum of 10K hours. Not only do they provide ultra-low ESR no matter how high the CPU loading, they also come in customized jet black from Nippon Chemi-Con and Nichicon.


5x (15μ) Gold Plated CPU Socket Design
GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

GIGABYTE OPT Fan Support
Many of today's 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 9 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.




GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities
GIGABYTE App Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.

  GIGABYTE EasyTune™ App
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.



  GIGABYTE Cloud Station™ APP
GIGABYTE Cloud Station™ is composed of several GIGABYTE's unique apps that allow your smart phones/tablet device to communicate, share resources, and control desktop PCs via wireless connection.

HDMI™ - Złącze multimedialne nowej generacji
HDMI ™ (High-Definition Multimedia Interface) to złącze służące do przesyłania cyfrowego, nieskompresowanego sygnału audio i wideo, który zapewnia przepustowość łącza do 5 GB / s i 8-kanałowy dźwięk najwyższej, a wszystko za pomocą jednego kabla. HDMI ™ jest w stanie transmitować wysokiej jakości, nieskompresowane cyfrowe wideo i audio, zapewnia renderowanie treści cyfrowych do 1080p bez strat jakościowych związanych z użyciem analogowych interfejsów i ich konwersją. Ponadto HDMI ™ jest kompatybilny z HDCP (High-bandwidth Digital Content Protection), umożliwia odtwarzanie Blu-Ray/HD DVD i innych zabezpieczonych cyfrowo nośników.
WSPARCIE TECHNOLOGII 4K Ultra HD
Rozdzielczość 4K to kolejny kamień milowy w dostarczaniu treści w wysokiej rozdzielczości, wykorzystujący około 4000 pikseli na osi poziomej, ponad czterokrotnie więcej niż w obecnie standardowej technologii HD. Płyty główne GIGABYTE zapewniają natywną obsługę 4K ze zintegrowaną grafiką Intel® HD Graphics przez HDMI.
* Zamieszczony materiał został udostępniony jedynie w celach informacyjnych. GIGABYTE zastrzega sobie prawo do wprowadzania zmian w specyfikacji produktu i udostępnionych informacji o produkcie bez wcześniejszego powiadomienia.
* Przedstawiane dane są oparte na maksymalnych teoretycznych wydajnościach przedstawionym przez producentów chipsetów lub organizacji określających zakres tych specyfikacji. Rzeczywista wydajność może się różnić w zależności od konfiguracji systemu.
* Wszystkie znaki towarowe są własnością ich właścicieli.
* Z uwagi na budowę systemu, zakres pamięci może się różnić.
